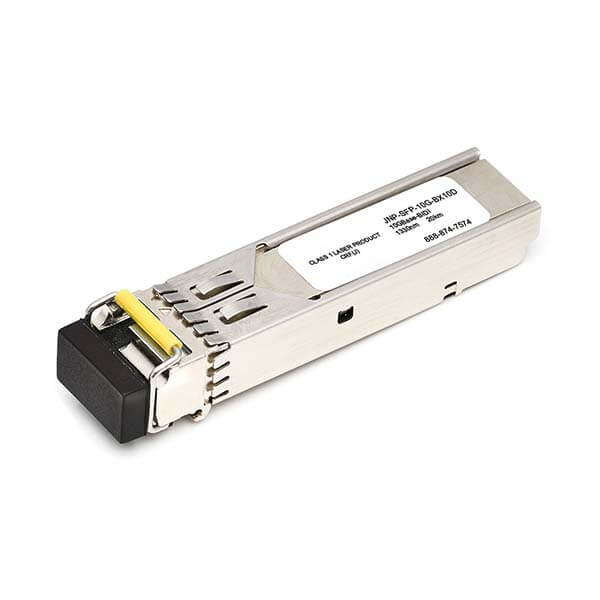

Juniper Network JNP-SFP-10G-BX10D 10GBASE-BX-D SFP Plus Transceiver Module

Specifications:

• Brand Name:- Juniper
• Part Number:- JNP-SFP-10G-BX10D
• Product Category:- Transceivers
• Transceiver Type:- SFP
• Media Type:- Single-Mode Fiber (SMF)

Parameters:

• TX Wavelength:- 1330 nm
• RX Wavelength:- 1270 nm
• Minimum Optical Budget:- 9 dB
• Maximum Distance:- 20km
• Supported Data Rate:- 1.25-10.31 Gbps
• Supported Applications:- 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps), STM-64 (9.95Gbps)
• DDM/DOM:- Support
• Temperature Range:- Standard 0°-70°C

Brief Details:

• Connectors:- Single LC
• Tx Wavelength Bandwidth:- 40 nm (1310-1350 nm)
• Rx Wavelength Bandwidth:- 40 nm (1250-1290 nm)
• Minimum Transmitting Power:- -5 dB
• Maximum Transmitting Power:- 1 dB
• Receiver Sensitivity:- -14 dBm
• Receiver Overload:- 0.5 dBm
• Dispersion:- 140-160 ps/nm
• Transmitter Type:- DFB Laser
• Receiver Type:- PIN photodiode
• Power:- +3.3V single power supply
• Chipset:- MAXIM, MINDSPEED, SEMTECH
• Compliance:- CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, RoHS, SFF-8431, SFP MSA

Dimensions:

• Production Dimensions (LxWxH):-  7.24 x 1.84 x 1.35 Cm/ 72.4 x 18.4 x 13.5 mm
• Weight: 0.1 kg/ 0.22 Lbs
• Product Shipping Dimensions(LxWxH): 4″x4″x2″

We kept stock in New, Used, and Refurbished condition.
